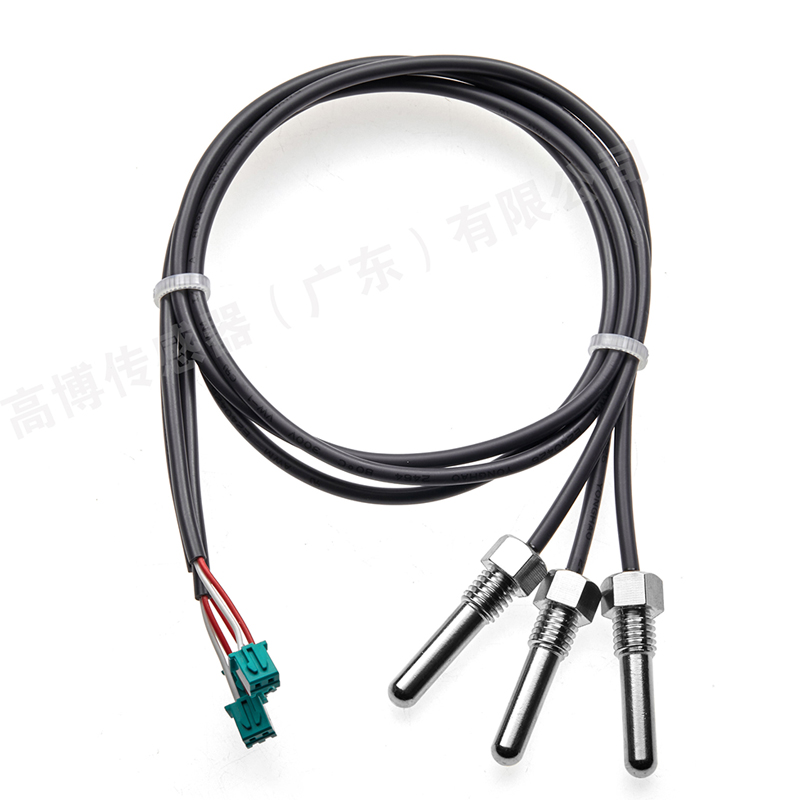

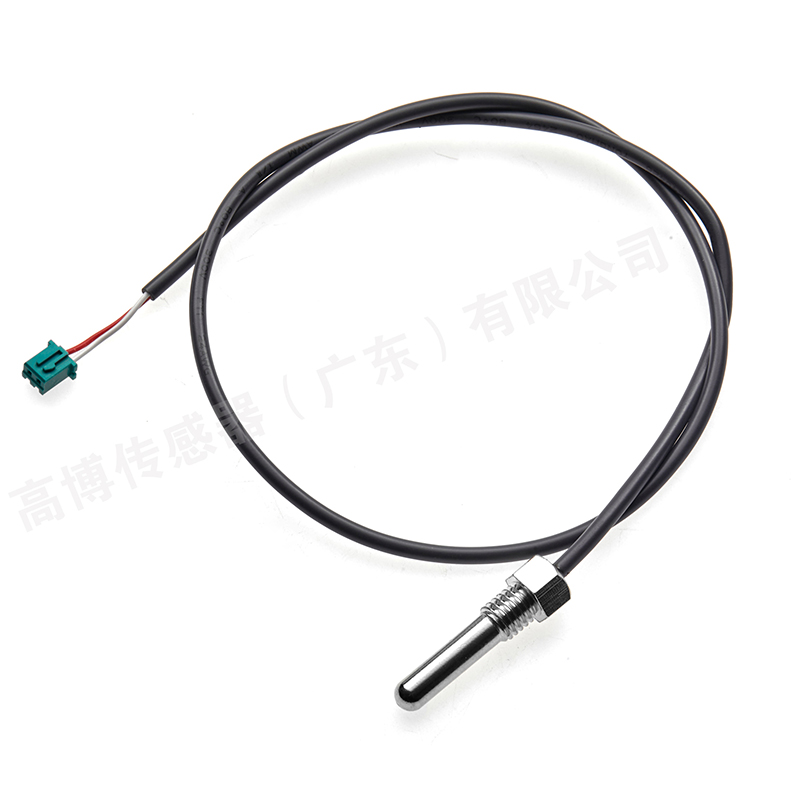

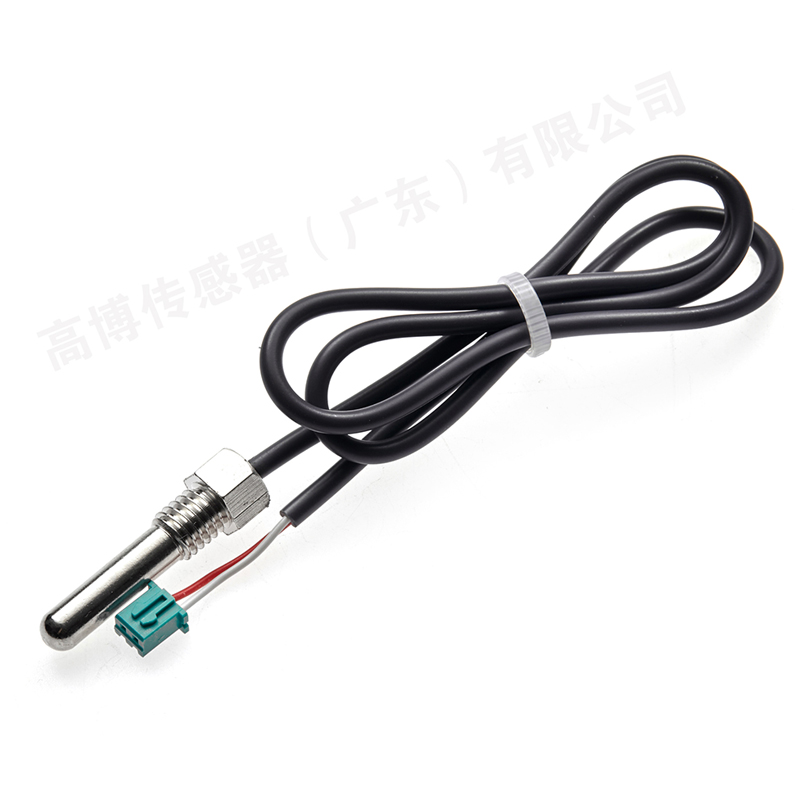

Industrial water treatment temperature sensor

4dhcpmingchen

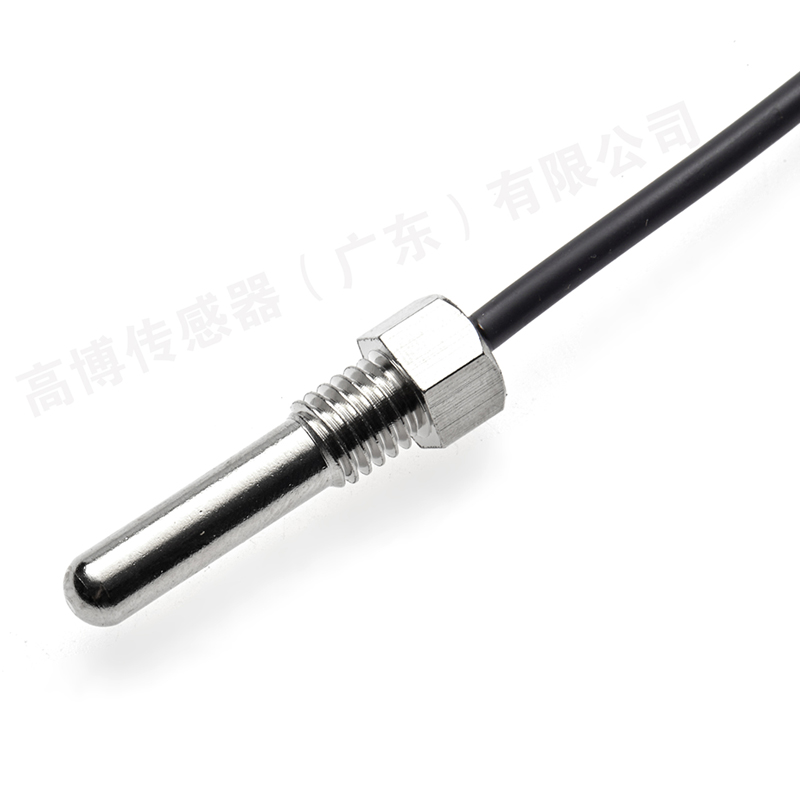

Features	1. In the protective tube of the metal cutting shell, the epoxy resin encapsulation structure is used 2. Due to the use of high heat/high temperature resistant epoxy resin, it can work in high-temperature oil environments 3. All materials meet ROHS environmental requirements
Scope of application	Home appliance temperature, engine temperature detection, engine oil temperature detection, new energy battery management system
Operating temperature range	-30-105℃
Thermal time constant	MTG2-2 t≈18sec（Medium: liquid）
Withstand voltage	AC1200V 1sec
Insulation resistance	DC500V Above 100MΩ
Resistance	R25=10K±5%(Can be customized according to customer requirements)
B value	R25/50=3950K±3% (Can be customized according to customer requirements)
