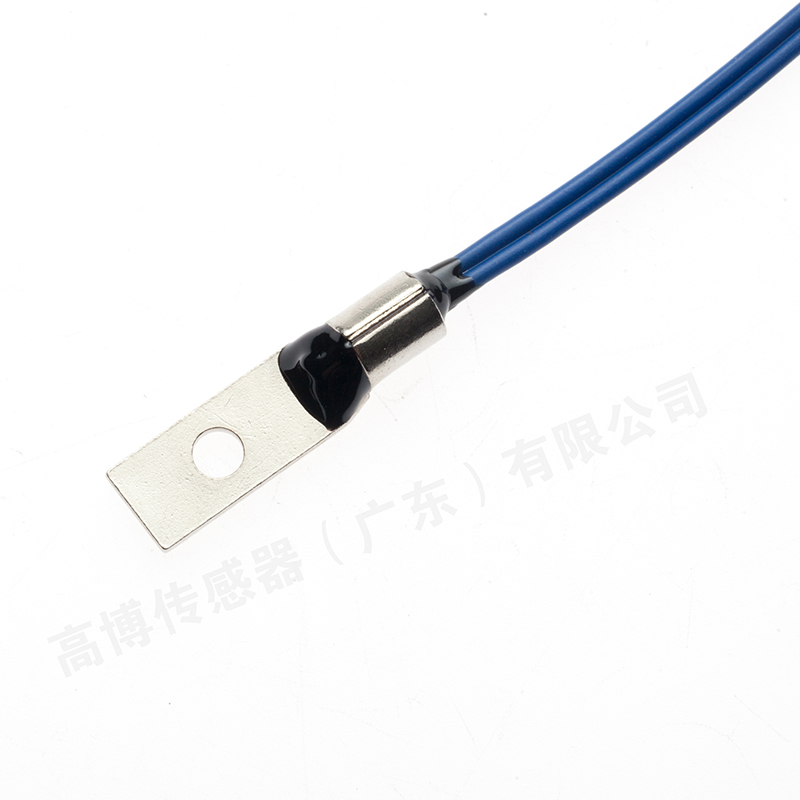

Industrial heat treatment sensor

4dhcpmingchen

Features	1. Surface flat temperature sensing, faster sensing speed, and more accurate temperature measurement 2. Screw hole square terminal housing, easy and fast installation 3. The temperature sensing film can be selected in various shapes according to needs, with a wide installation range 4. The product department provides various specifications such as temperature resistance and pressure resistance according to different applications
Scope of application	Can be applied in a wide range of fields
Operating temperature range	-20-105℃
Thermal time constant	MTG2-1 t≈5sec（Medium: 100 ℃ aluminum plate）
Withstand voltage	AC1500V 1sec
Insulation resistance	DC1000V Above 300MΩ
Resistance	R25=5KΩ±1% (Can be customized according to customer requirements)
B value	R25/50=3380K±1% (Can be customized according to customer requirements)
