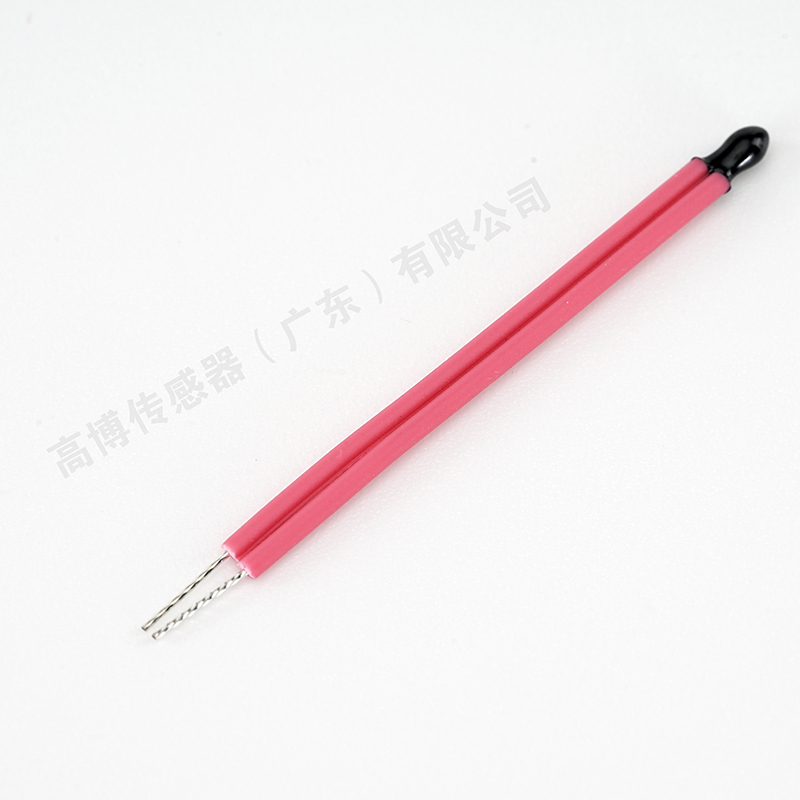

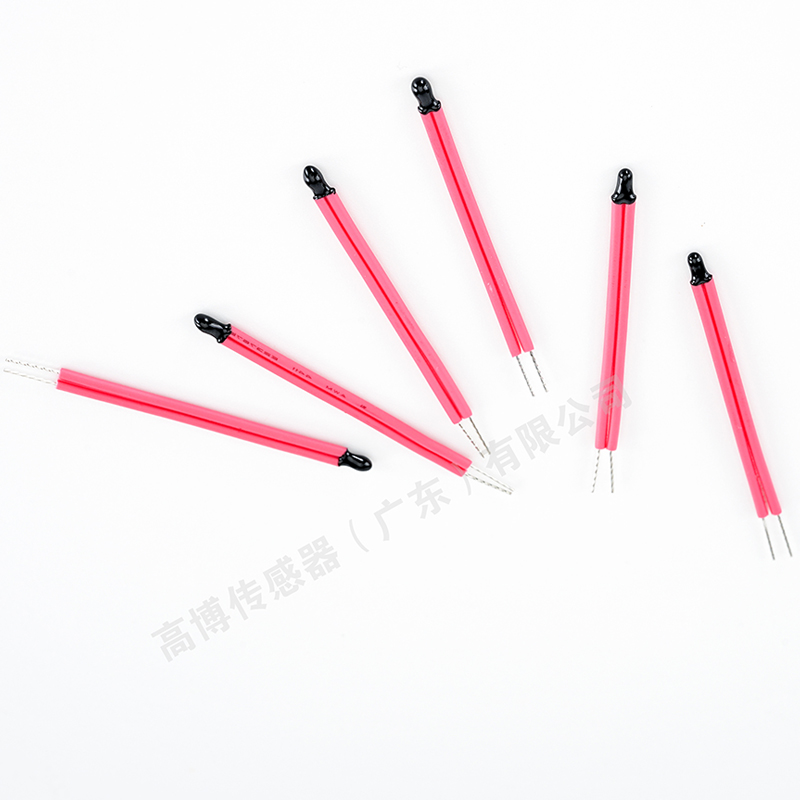

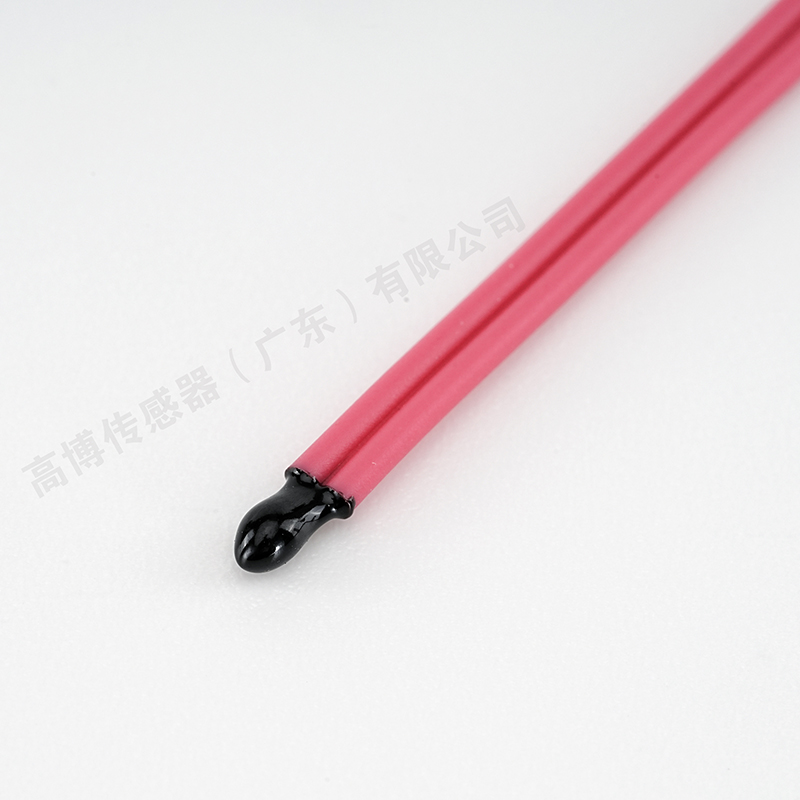

| Features | 1. Epoxy resin sealed thermistor 2. Can be used over a wide temperature range |
| Scope of application | Air conditioning room temperature and external air temperature detection |
| Operating temperature range | -40-105℃ |
| Thermal time constant | t=5sec（Medium: Solid state） |
| Withstand voltage | AC1200V 1sec |
| Insulation resistance | DC500V Above 100MΩ |
| Resistance | R25=6.8K±1% (Can be customized according to customer requirements) |
| B value | R25/50=3950K±1% (Can be customized according to customer requirements) |
